Medium / High
Kiln exhaust and process gas may require elevated-temperature fan selection.
High / Very High
Raw material dust and cement particles can increase impeller and casing wear.
Medium / High
Long ducts, filters and dampers may create considerable system resistance.
Continuous Operation
Stable operation, vibration control and maintenance access should be reviewed.
Why Cement Plants Need Specialized Fan Selection
Cement plant fans are not selected only by fan size. A practical selection should review gas temperature, dust load, system resistance, duct layout, material condition and continuous operating demand.
High-Temperature Gas
Kiln exhaust and process gas may require fans suitable for elevated-temperature conditions, with proper material, drive and bearing arrangement review.
Abrasive Dust Load
Cement dust and raw-material particles can increase wear on impellers, casing and ducts. Dust concentration should be confirmed before model selection.
Pressure Fluctuation
Long ducts, dampers, filters and process changes may create unstable resistance. Fan pressure should be checked against the complete system.
Continuous Operation
Cement plant fans often need stable operation under long working hours, so motor load, vibration, maintenance space and operating margin matter.
Fan Roles Across a Cement Production Line
Different cement process areas require different fan duties. Identify the fan position first, then review temperature, dust load, pressure demand and airflow requirement.
Vertical Mill Exhaust
Exhaust gas and dust-laden air from raw mill or grinding systems.
Kiln Head / Kiln Tail
Support ventilation, exhaust handling and air balance around the kiln system.
Kiln Exhaust
Maintain draft and discharge process gas from the kiln exhaust route.
Dust Collector
Provide suction for baghouse filters, cyclone separators or dust pipelines.
Clinker Cooler
Supply or exhaust cooling air around clinker cooler sections.
Cement Process Fan Selection Matrix
Fan selection should start from process position, not from model name. The table below gives preliminary engineering direction only.
| Cement Process | Fan Role | Gas Temperature | Dust Load | Pressure Demand | Suggested Direction |
|---|---|---|---|---|---|
| Kiln Exhaust | Discharge exhaust gas and maintain draft stability. | Medium / High | High | Medium / High | High-temperature induced draft centrifugal fan |
| Kiln Head / Kiln Tail | Support kiln air balance and exhaust handling. | Medium / High | High | Medium / High | Wear-reviewed centrifugal fan |
| Vertical Mill Exhaust | Remove gas and fine dust from raw mill or vertical mill system. | Medium | Very High | Medium | Large-flow dust-laden gas centrifugal fan |
| Dust Collector System | Provide suction for baghouse, cyclone or dust collection lines. | Normal / Medium | High | Medium / High | Dust collection centrifugal fan |
| Clinker Cooler | Supply or exhaust cooling air around clinker cooler sections. | Normal / Medium | Medium | Low / Medium | Large-air-volume centrifugal fan |
Typical Fan Applications in Cement Plants
QIYUE FAN can review fan direction for kiln exhaust, mill ventilation, dust collection and clinker cooling according to actual working conditions.
Kiln Exhaust Fan
Handles process gas and helps maintain stable kiln draft. Temperature, dust content, pressure demand and continuous operation should be reviewed together.
Kiln Head / Kiln Tail Fan
Supports air balance, exhaust handling and environmental control around the kiln system where heat, dust and long operating hours are present.
Vertical Mill Exhaust Fan
Moves dust-laden process gas from raw mill or grinding systems under changing dust concentration and system resistance.

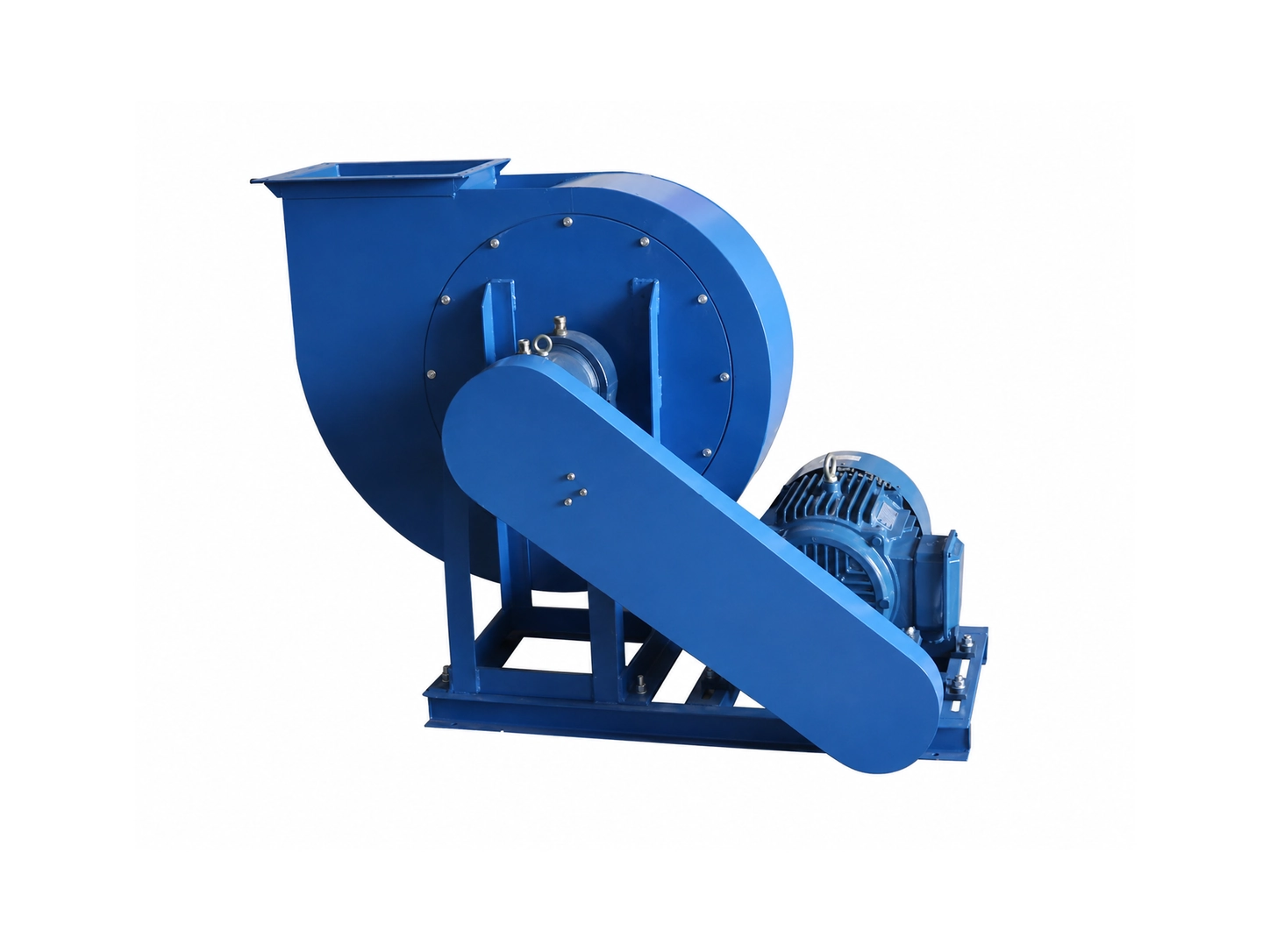

Dust Collector Fan
Provides suction for baghouse filters, cyclone separators and dust collection pipelines. Loaded-filter resistance must be included in fan pressure.
Clinker Cooler Ventilation Fan
Supplies or exhausts cooling air around clinker cooler sections where large airflow and stable continuous operation are normally required.
Cement Plant Fan Selection
Selection support connects the process position with airflow, pressure, temperature, dust condition, installation and motor requirements.

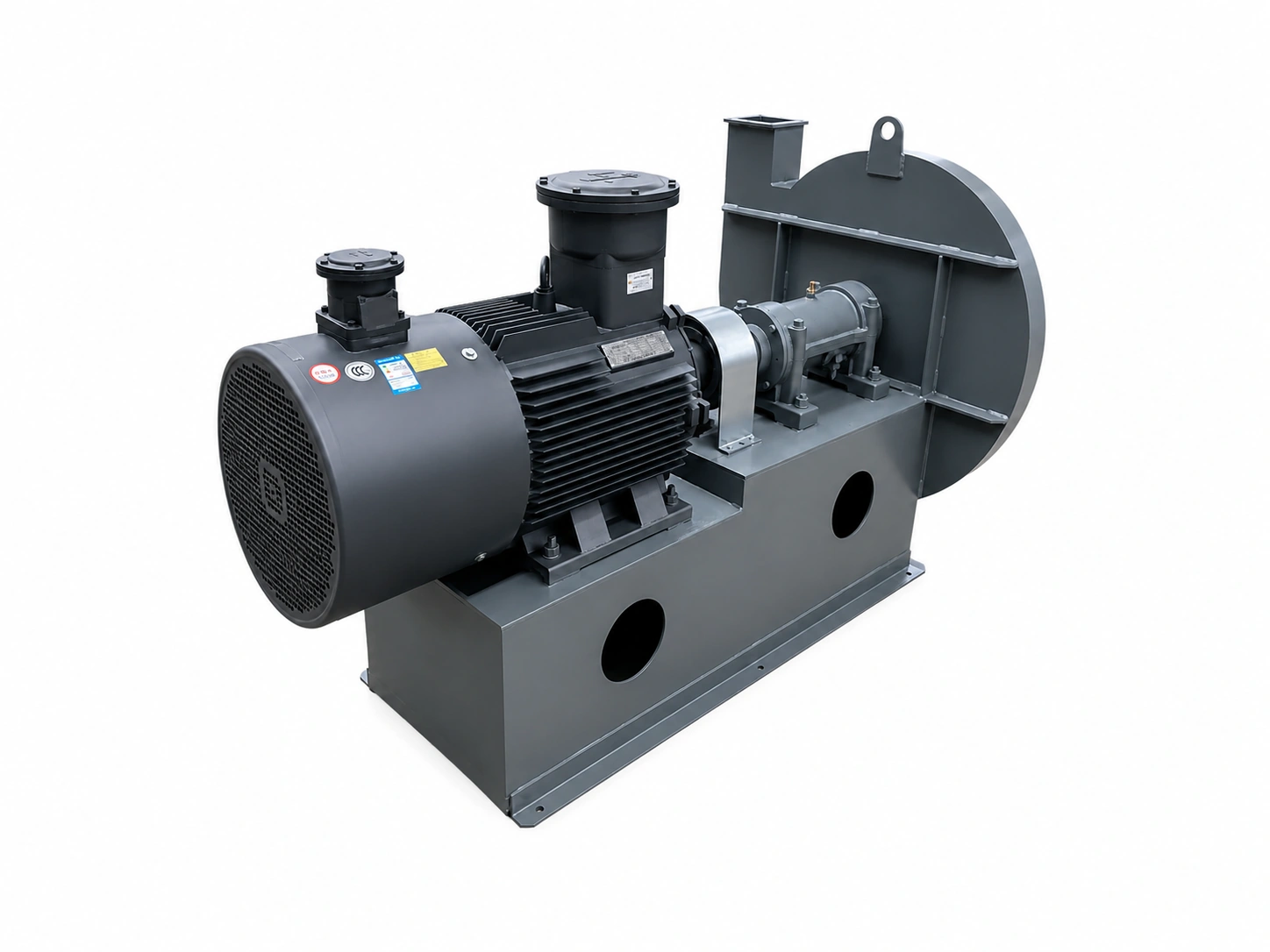

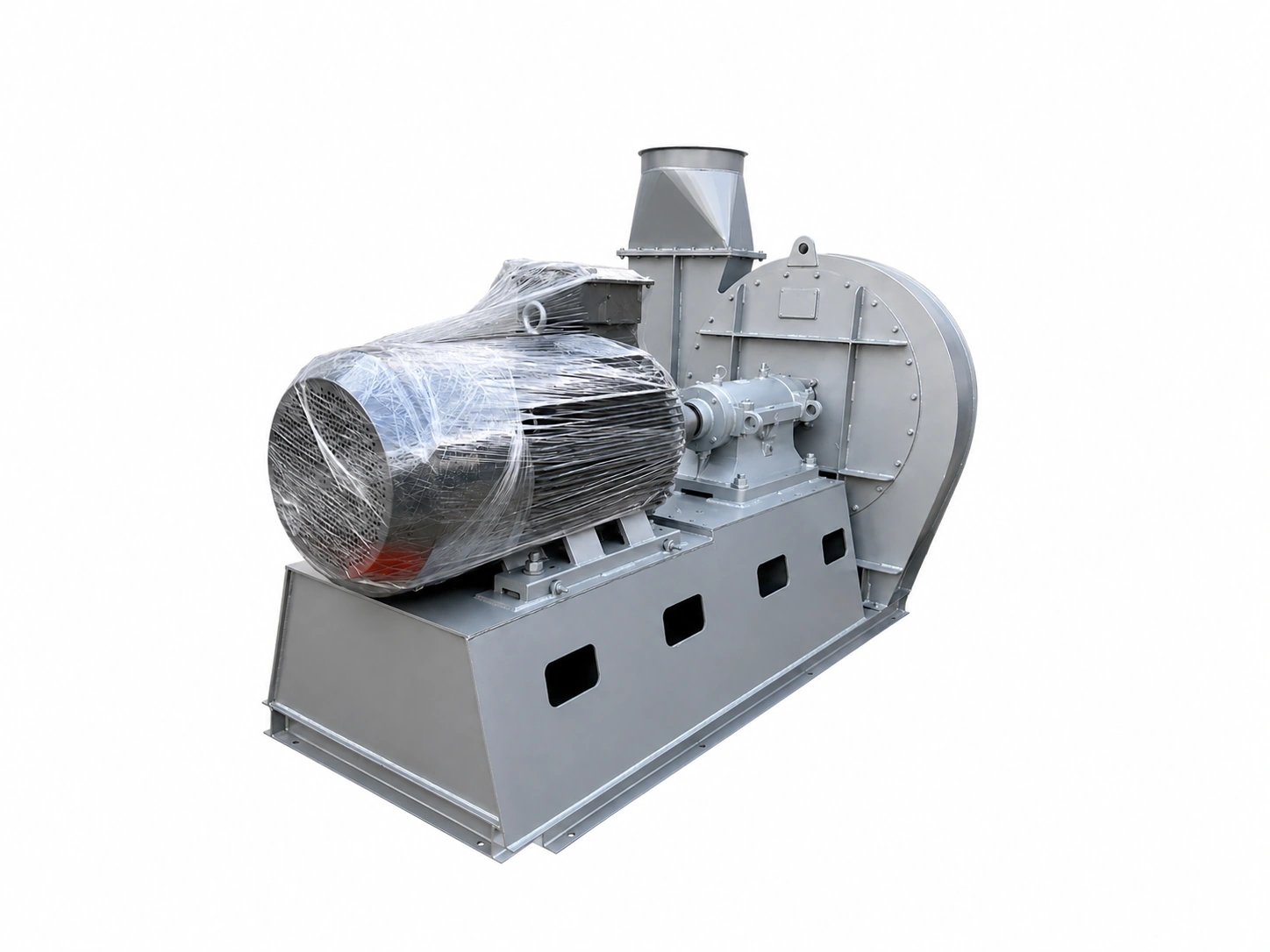

Recommended QIYUE FAN Directions
The final fan model should be confirmed by operating point and working condition. These four series are preliminary references, not automatic substitutions.
Clean-Side Fan or Dirty-Side Fan?
Fan position changes the amount of abrasive cement dust that reaches the impeller and therefore changes wear exposure, maintenance demand and suitable fan construction.
Fan After Effective Filtration
Placing the fan after a baghouse, cyclone or separator can reduce direct abrasive particle exposure. Collector resistance must still be included in the fan operating point.
Dust-Laden Gas Through the Fan
When cement dust reaches the impeller directly, particle hardness, concentration, size, pre-separation, casing and impeller wear require specific review.
Parameters Needed for Cement Plant Fan Selection
More complete working-condition data helps avoid choosing a fan that can meet airflow but cannot handle the real temperature, dust or resistance condition.
• Static pressure or total pressure
• Normal gas temperature
• Maximum gas temperature
• Dust concentration
• Particle characteristics
• Gas composition and moisture
• Duct diameter and layout
• Dust collector or separator
• Damper and equipment resistance
• Clean-side or dirty-side fan position
• Continuous operating hours
• Required operating margin
• Voltage and frequency
• Fan rotation and outlet angle
• Drive arrangement
• Installation and maintenance space
• Nameplate photo
• Old performance curve
• Existing motor information
• Current problem or failure mode
