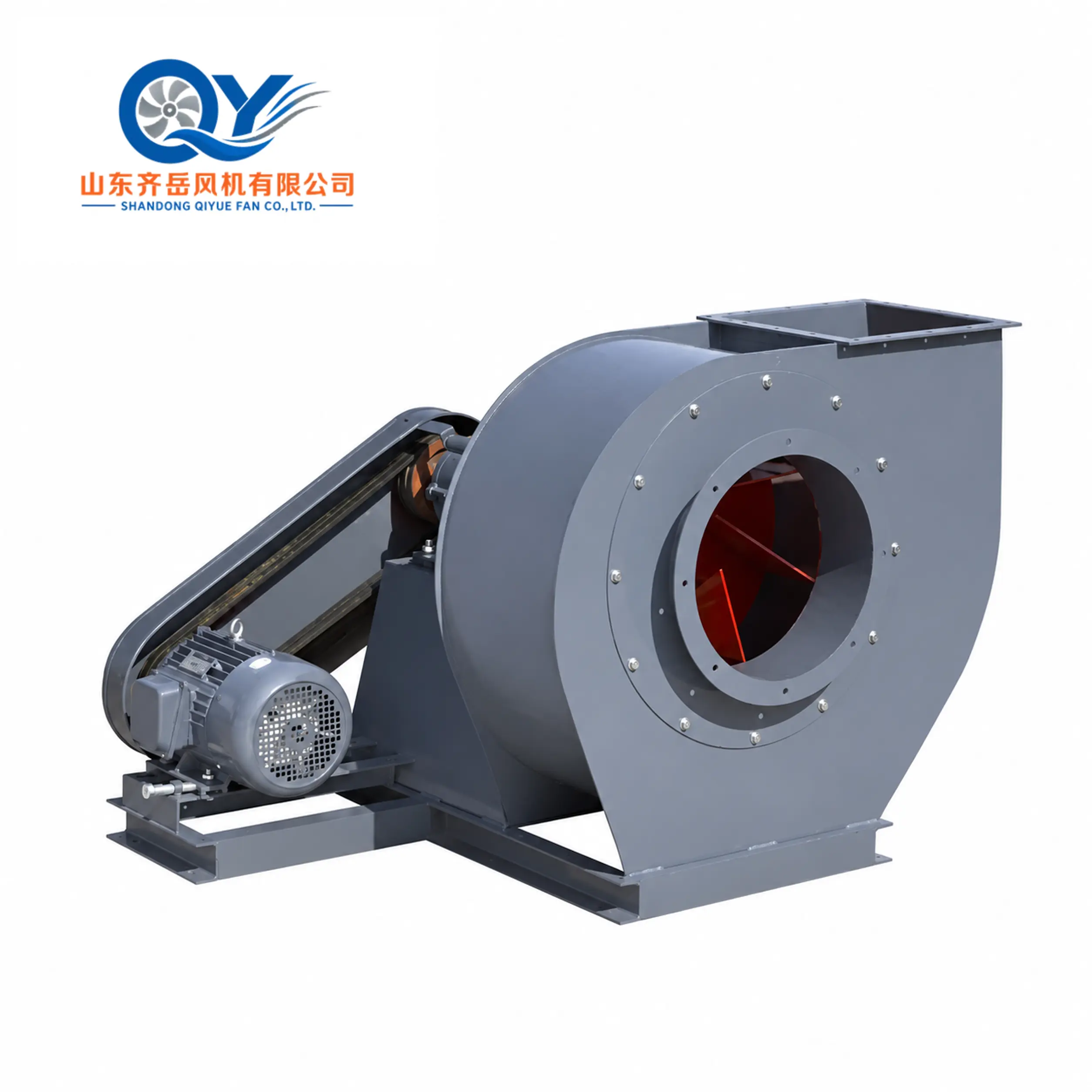

The C6-46-11 is an industrial dust collection centrifugal fan designed for conveying air mixtures containing wood chips, bamboo fibre, dust and similar lightweight particulate material.
The published series includes A-type direct drive and C/D-type transmission arrangements. Fan sizes extend from No.2 to No.12, with multiple rotational speeds available for duty-point matching.
A, C and D-Type Configurations
The C6-46-11 series is published with several mechanical arrangements to match different fan sizes, rotational speeds and installation conditions.
Published Performance Range
The following table summarizes the principal published duty ranges from the original C6-46-11 manual.
No.3A–6A Outline & Installation Drawing
Direct-drive A-type drawing for the No.3A, No.4A, No.5A and No.6A configurations.
No.3A–6A Dimension Schedule
No.3C–6C Outline & Installation Drawing
C-type transmission drawing showing casing, bearing arrangement, motor position, foundation references and discharge orientations.
No.3C–6C External & Foundation Dimensions
No.8–12 C/D Outline & Installation Drawing
Large-frame C-type and D-type installation drawing including foundation arrangement and Right 90° / Right 180° discharge orientation references.
No.8–12 Main Installation Dimensions
Dust and Lightweight Material Conveying
Dust Extraction
Industrial dust-laden air extraction systems.
Wood Processing
Conveying air mixtures containing wood chips and lightweight wood waste.
Bamboo Fibre
Air-moving duties containing bamboo fibre and similar light material.
Process Exhaust
Process exhaust within the published airflow, pressure and temperature range.
Select by Duty Point and Material
Final selection should be based on actual airflow, required pressure, conveyed material, temperature and installation conditions rather than fan size alone.
Required total or static pressure, Pa
Dust / wood chip / fibre characteristics
Particle concentration
Operating temperature
Preferred A, C or D-type arrangement
Voltage, frequency and phase
Required discharge orientation
Replacement dimensions if applicable
Quantity and destination country
C6-46-11 FAQ
What materials can the C6-46-11 handle?
The original manual specifies air mixtures containing wood chips, bamboo fibre, dust and similar lightweight material.
What fan sizes are available?
The published series covers fan sizes from No.2 through No.12.
What drive arrangements are available?
Published arrangements include A-type direct drive and C/D-type transmission configurations.
What is the maximum published airflow?
The supplied manual reaches approximately 48,770 m³/h.
What is the maximum conveyed-medium temperature?
The original manual specifies a medium temperature not exceeding 80°C.
Can the motor be matched to project power supply?
Motor configuration can be reviewed according to the selected duty point and the required voltage, frequency and phase.
