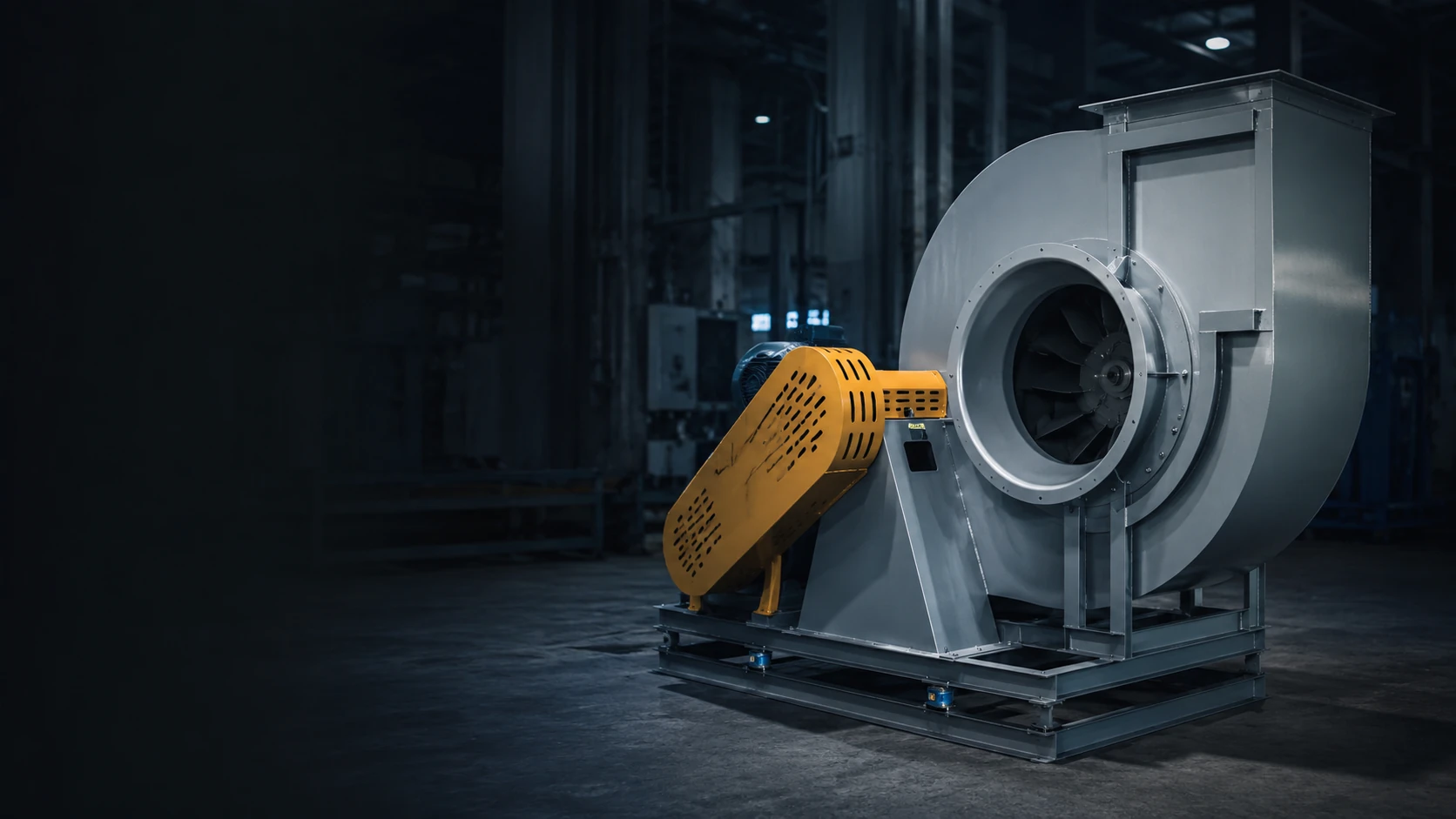

Boiler Fan Selection Guide
ID Fan, FD Fan and High Temperature Exhaust
Boiler fan selection should match the whole boiler air and flue gas route, including combustion air supply, induced draft, dust collector resistance, chimney draft, flue gas temperature and continuous operating load.
This guide helps engineers and purchasing teams compare forced draft fans, induced draft fans, secondary air fans and high temperature centrifugal fans before selecting a suitable QIYUE FAN model.
Boiler Fan Selection Starts from Fan Position
The first decision is not the fan model number. It is the fan position in the boiler system. A forced draft fan supplies combustion air before the furnace, while an induced draft fan extracts hot flue gas after the boiler and dust removal equipment.
In many industrial boiler systems, the actual fan duty is affected by dust collector resistance, damper position, duct length, elbow loss, economizer resistance and chimney discharge. These factors must be included in static pressure or total pressure calculation.
QIYUE FAN reviews boiler capacity, fuel type, airflow, pressure, flue gas temperature, dust condition, fan position, motor standard and installation layout before recommending a boiler induced draft fan, forced draft fan or high temperature centrifugal fan.
Where FD Fan, ID Fan and Secondary Air Fan Work
A boiler system may use more than one fan. The selection should consider combustion air, furnace pressure, flue gas extraction and smoke treatment resistance as one complete route.
Supplies combustion air before the furnace.
Fuel burns and generates flue gas.
Creates resistance in the flue gas line.
Extracts flue gas and supports negative pressure.
Boiler Forced Draft Fan, Induced Draft Fan and Secondary Air Fan
Each boiler fan type has a different position and selection focus. Confusing fan positions often leads to wrong pressure calculation or unsuitable material selection.
| Fan Type | Position | Function | Typical Requirement | Related Page |
|---|---|---|---|---|
| Forced Draft Fan | Before furnace | Supplies combustion air | Stable airflow, duct resistance, motor control | Forced Draft Fan System |
| Induced Draft Fan | After boiler or dust collector | Extracts flue gas and maintains negative pressure | Heat resistance, dust resistance, system pressure | Boiler Induced Draft System |
| Secondary Air Fan | Combustion support point | Improves combustion efficiency | Controlled air volume and stable pressure | Fan Selection Support |
| High Temperature Fan | Hot air or flue gas line | Handles continuous high-temperature exhaust | Temperature, bearing, motor isolation, material | High Temperature Exhaust System |
Key Parameters for Boiler Fan Selection
For boiler applications, fan performance must be checked together with the real system condition. The same model may perform differently after adding a dust collector, damper, long flue duct or chimney route.
| Parameter | What to Confirm | Why It Matters |
|---|---|---|
| Boiler Capacity | Steam capacity, fuel type and operating load | Supports preliminary airflow and draft estimation. |
| Airflow | Required air volume in m³/h or CFM | Determines combustion air supply or flue gas exhaust capacity. |
| Static or Total Pressure | Duct resistance, dust collector resistance and chimney resistance | Affects actual draft stability after installation. |
| Flue Gas Temperature | Continuous temperature and peak temperature | Influences casing, impeller, bearing and motor arrangement. |
| Dust Condition | Dust concentration, ash content and particle hardness | Determines wear resistance, inspection access and maintenance cycle. |
| Installation Layout | Outlet angle, rotation, foundation, duct direction and motor space | Affects final fan structure and installation fit. |
Do Not Select a Boiler Fan Only by Motor Power
Motor power alone does not tell whether the fan can provide the required airflow at real boiler system resistance. A fan with sufficient motor power may still be unsuitable if the pressure curve does not match the working point.
For induced draft systems, dust collector resistance is often the key reason for poor draft after installation. Bag filters, cyclone collectors, wet scrubbers, dampers, elbows and chimney height should all be checked before final model selection.
Collector Resistance
Confirm resistance from bag filter, cyclone, wet scrubber or other dust removal equipment.
Temperature Reserve
Review continuous and peak temperature, not only normal average flue gas temperature.
Wear Risk
High ash content or abrasive dust may require wear-resistant design and inspection access.
Working Point
Select the fan at the real airflow and pressure point, not at free-air condition.
Boiler Fan Model Direction by Working Condition
The exact model should be selected according to airflow, pressure, temperature and boiler system resistance. The following table helps buyers find the right product group before sending parameters.
| Working Condition | Selection Direction | Recommended Page | Main Review Point |
|---|---|---|---|
| Small boiler induced draft | Compact ID fan for small boiler flue gas exhaust | Y6-30 Boiler Induced Draft Fan | Boiler size, temperature and dust collector resistance |
| Standard boiler room exhaust | Regular boiler induced draft fan | Y5-47 Boiler Induced Draft Fan | 1-20 t/h boiler draft and flue gas route |
| Smoke removal and dust collection line | Boiler ID fan for treatment-line resistance | Y5-48 Boiler Induced Draft Fan | Collector, damper, duct and chimney resistance |
| Higher boiler flue gas resistance | Boiler ID fan for stronger system pressure | Y8-39 / Y9-38 Boiler Fan | Pressure reserve, dust condition and motor capacity |
| Large-capacity boiler system | Large airflow boiler draft fan | GY6-51 Large Capacity Boiler Fan | High airflow, duct route and continuous operating duty |
What to Send When Requesting a Boiler Fan Quote
Fan Type
Forced draft fan, induced draft fan, high temperature fan or unknown.
Boiler Data
Boiler capacity, fuel type, operating load and working schedule.
Airflow and Pressure
Required airflow and static pressure or total system resistance.
Temperature
Continuous flue gas temperature and peak temperature.
Dust Collector
Collector type, filter resistance, dust load and ash condition.
Installation
Duct layout, outlet angle, rotation, voltage, frequency and quantity.
Where Boiler Fan Pressure Loss Comes From
For boiler induced draft and forced draft applications, fan pressure should be checked against the complete air or flue-gas route. A motor power value or fan model name alone cannot confirm whether the fan will match the real operating point.
Boiler Pass Resistance
Heating surfaces, furnace structure and boiler gas passages create the base resistance that the draft fan must overcome.
Economizer or Air Preheater
Heat-recovery equipment may add pressure loss, especially when ash deposition or narrow passages increase resistance.
Dust Collector Resistance
Bag filters, cyclones, wet scrubbers and other treatment equipment often become the largest resistance item for ID fan selection.
Duct, Elbow and Damper Loss
Long ducts, elbows, reducers, dampers and transitions should be included in the static or total pressure calculation.
Chimney and Outlet Loss
Chimney height, outlet layout and final discharge conditions affect draft stability and should be reviewed before quotation.
Confirm Airflow + Total Resistance
The fan should be checked at the real operating point, including airflow, pressure, temperature, dust condition, speed and motor margin.
Boiler Fan Selection Data Required Before Quotation
When a buyer is not sure whether the project needs an FD fan, ID fan or high temperature exhaust fan, QIYUE FAN can first review the operating route and then suggest the correct fan direction.
Choose the Correct Boiler Fan Product Family
Move from selection guidance to the corresponding product family according to fan position, gas condition and temperature duty.
Compare boiler ID fan directions for flue-gas extraction, negative pressure, dust-collector resistance and chimney discharge.
View Boiler ID Fans →Compare boiler FD fan directions for combustion-air supply, burner pressure, air-preheater resistance and load control.
View Boiler FD Fans →Compare furnace, kiln, boiler and thermal-process fan directions when continuous or peak temperature changes the required structure.
View High-Temp Fans →FAQ About Boiler Fan Selection
What is the difference between a boiler forced draft fan and induced draft fan?
A forced draft fan supplies combustion air into the furnace. An induced draft fan extracts flue gas after the boiler and helps maintain negative pressure in the boiler system.
Why is dust collector resistance important for boiler ID fan selection?
The induced draft fan must overcome the resistance of the dust collector, ducts, elbows and chimney. If resistance is underestimated, the boiler draft may be unstable after installation.
When should I choose a high temperature boiler fan?
Choose a high temperature boiler fan when the gas temperature exceeds normal ventilation conditions or when continuous hot flue gas, kiln exhaust or furnace exhaust must be handled.
Can QIYUE FAN recommend a boiler fan model from working conditions?
Yes. Send boiler capacity, fuel type, airflow, pressure, flue gas temperature, dust collector resistance, duct layout, voltage and quantity. QIYUE FAN can review the suitable fan direction.
What is the best boiler fan for a small boiler?
For small boiler induced draft, the Y6-30 boiler induced draft fan can be reviewed first. Final selection still depends on airflow, pressure, temperature and dust condition.
Can one boiler fan replace another model only by motor power?
No. Replacement selection should compare airflow, pressure curve, speed, gas temperature, dust condition, rotation, outlet angle, foundation and motor standard.
Need Help Selecting a Boiler Fan?
Send fan type, boiler capacity, airflow, pressure, flue gas temperature, dust condition, dust collector resistance, outlet direction, voltage, quantity and destination. QIYUE FAN will review a suitable boiler fan direction for your project.
