Metal & Non-Coal Mine Ventilation
Metal & Non-Coal Mine Ventilation Fans
Main, auxiliary and local ventilation fan directions for metal mines, non-ferrous mines, gold mines and underground engineering projects.
Start with the ventilation role and mine airflow network, then match the fan family to required airflow, system resistance, roadway layout, duct conditions, installation position and long-term operating requirements.
Main Ventilation
FKZ / FKCDZ
Primary mine airflow network
Main / Auxiliary
K / DK
Efficiency-oriented mine duty
Local Roadway
JK / DJK · FK / FKD
Roadway excavation and ducted face ventilation
01 · Ventilation Roles
Ventilation Directions for Metal and Non-Coal Mines
Metal and non-coal mine ventilation projects can include main ventilation networks, auxiliary branch ventilation, roadway excavation, stope ventilation and underground engineering work areas.
The required fan direction depends on mine type, airflow volume, system resistance, roadway layout, duct arrangement, installation position and operating conditions.
QIYUE FAN product directions for these projects include FKZ / FKCDZ main ventilation fans, K / DK main or auxiliary mine fans, and JK / DJK or FK / FKD local ventilation fan directions.
01 / MAIN
Main Mine Ventilation
Supports the primary underground airflow network and mine ventilation station duty.
02 / AUXILIARY
Auxiliary Ventilation
Supports branch roadways, underground work zones and areas requiring additional airflow.
03 / LOCAL
Local Roadway Ventilation
Provides duct-connected fresh-air supply for development headings, roadway excavation and underground working faces.
For mine airflow routes, branch resistance and coordination between main and local ventilation, continue to Underground Mine Ventilation System →
02 · Main / Auxiliary / Local
Separate the Ventilation Role Before Choosing the Fan Family
The same mine may require more than one fan role. Main network duty, auxiliary branch ventilation and duct-connected local roadway ventilation should be reviewed separately.
MAIN VENTILATION
Overall underground mine airflow network
FKZ / FKCDZ
AUXILIARY
Branch roadways and underground support areas
K / DK where project duty fits
LOCAL ROADWAY
Development headings, excavation faces and duct-based local air supply
JK / DJK · FK / FKD
03 · Fan Series
Metal & Non-Coal Mine Ventilation Fan Series
Select the product direction according to mine type, ventilation role, airflow volume, system resistance, duct conditions, installation position and operating requirements.
Primary Main Ventilation
FKZ / FKCDZ Series Mine Ventilation Fan
Primary main-ventilation direction for metal and non-coal mine airflow networks where airflow, pressure and installation conditions are defined.
View FKZ / FKCDZ → Main / Auxiliary Efficiency Direction

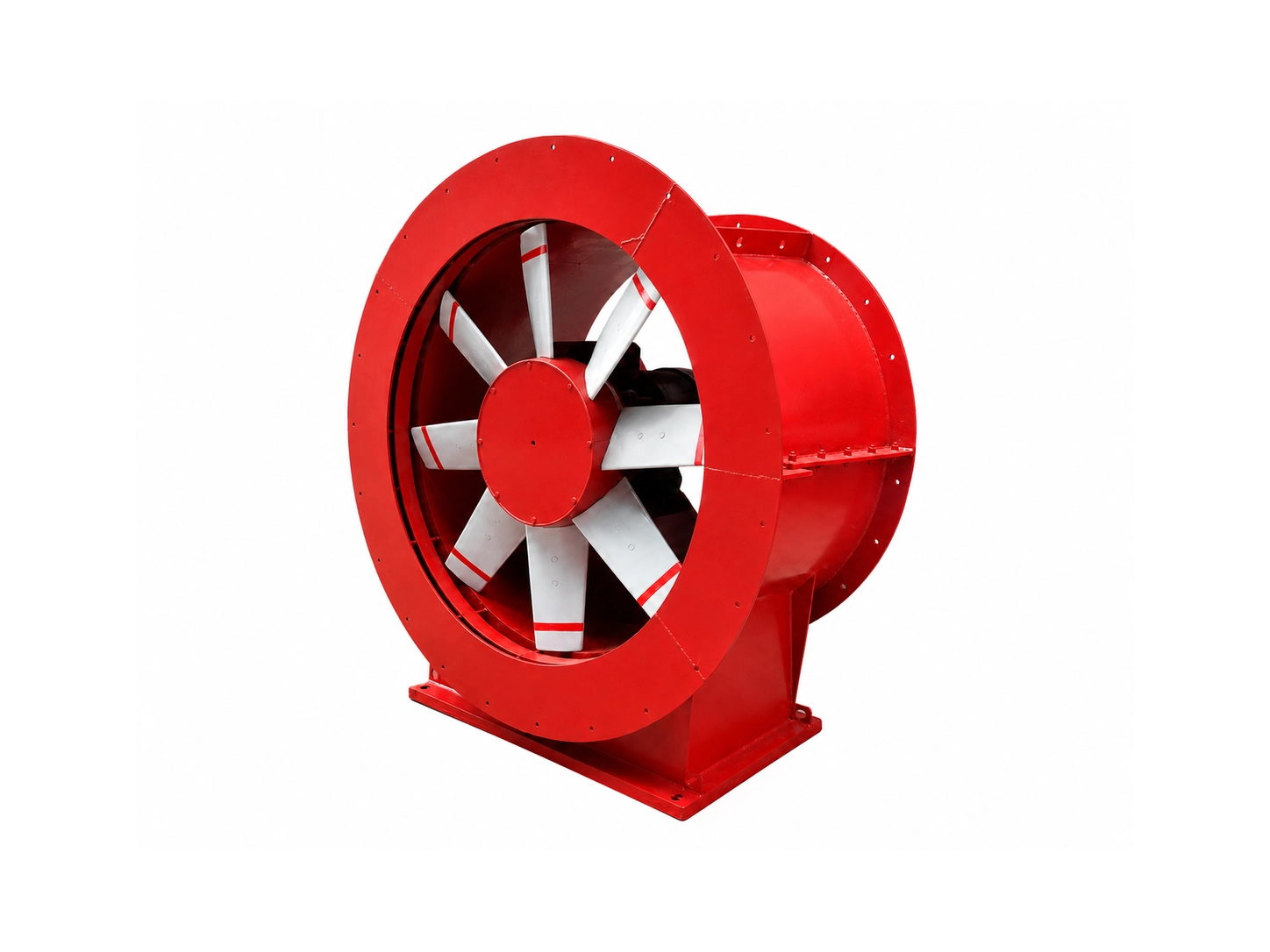

K / DK Series Mine Energy Saving Fan
Main or auxiliary mine ventilation direction where the operating point, branch resistance and long-term efficiency are reviewed together.
View K / DK → Local Roadway Ventilation

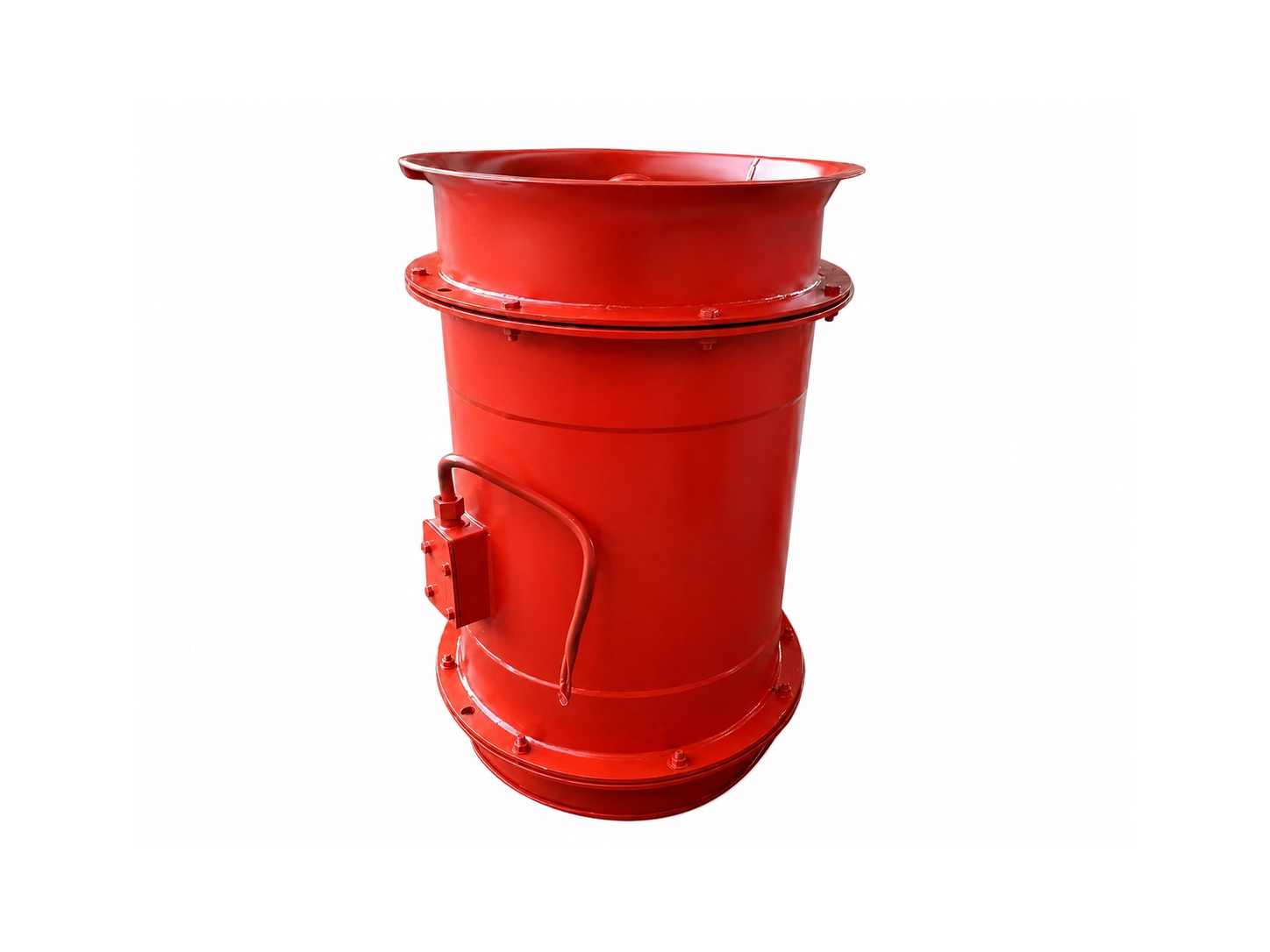

JK / DJK & FK / FKD Local Mine Fans
Local forced-ventilation direction for metal and non-coal mine headings, roadway excavation, drifting, stope ventilation and duct-connected working-face air supply.
Local Mine Fan Naming and Selection
JK / DJK and FK / FKD designations can appear in metal and non-coal mine local-ventilation projects. For replacement work, confirm the original nameplate, motor data, duct diameter, airflow and pressure requirement instead of selecting from the model name alone.
JK / DJK
Existing mine-roadway and local-ventilation product direction for excavation, stope and underground duct applications.
View JK / DJK → FK / FKD
FK covers conventional single-stage local ventilation duties. FKD uses a counter-rotating configuration where greater pressure capability or longer duct duty is required.
View FK / FKD → 04 · Applications
Applications in Metal and Non-Coal Mine Ventilation
Metal Mines
Main, auxiliary and local ventilation support for underground metal mine roadways and working areas.
Gold & Non-Ferrous Mines
Ventilation fan directions for gold mines, non-ferrous mines and underground mineral projects.
Roadway Excavation
Duct-connected local air supply for roadway excavation, development headings and underground construction work.
Underground Engineering
Ventilation support for underground civil works, service tunnels and engineering spaces.
05 · Selection Inputs
How to Select Metal and Non-Coal Mine Ventilation Fans
Fan selection should be based on ventilation role, airflow requirement, system resistance, mine layout, duct conditions, installation position and long-term operating requirements.
01
Mine Type
Metal mine, non-ferrous mine, gold mine, building-material mine, chemical mine or underground engineering project.
02
Ventilation Role
Main ventilation, auxiliary branch ventilation or local roadway ventilation.
03
Airflow
Required air volume for the main network, branch roadway or local working face.
04
Pressure / Resistance
Required pressure or known system resistance from roadway and ventilation-network conditions.
05
Roadway / Duct Data
Roadway layout, branch route, ventilation-duct diameter, total duct length, bends and known leakage condition for local ventilation duty.
06
Installation
Installation position, available space, connection arrangement and project layout.
07
Operating Conditions
Mine environment, temperature, dust conditions, continuous operation requirements and maintenance conditions.
08
Electrical Supply
Voltage, frequency, phase, motor requirements, starting method and quantity.
09
Replacement Data
For existing-fan replacement, send the original model, nameplate, motor data, duct diameter, dimensions and required operating duty.
06 · Long-Term Operation
The Operating Point Matters More Than the Series Name
For long-term mine operation, the fan family should be reviewed together with the actual airflow and resistance duty, motor configuration, installation conditions and maintenance requirements.
01 / DUTY POINT
Airflow + Resistance
Match the fan direction to the required mine airflow and system resistance.
02 / LAYOUT
Mine Network Conditions
Roadway layout, branches and local ventilation routes influence the required fan duty.
03 / OPERATION
Long-Term Efficiency
Efficiency and motor configuration should be reviewed for long-term mine operation.
04 / MAINTENANCE
Installation & Service
Installation position and maintenance conditions should be included in the final configuration review.
07 · Engineering Path
Move from Mine Airflow Network to the Correct Fan Series
Use the system page to establish the airflow network and resistance first, then move to the product family that matches main, auxiliary or local ventilation duty.
01 / SYSTEM
Underground Mine Ventilation System
Review airflow routes, resistance and main/local coordination.
06 / LOCAL
FK / FKD Local Fans
Single-stage and counter-rotating local ventilation directions for metal and non-coal mine duct systems.
08 · FAQ
Metal & Non-Coal Mine Ventilation Fan Questions
What are metal and non-coal mine ventilation fans used for?
They support main ventilation, auxiliary ventilation and local air supply in metal mines, non-ferrous mines, gold mines and underground engineering projects.
Which fan series are used for non-coal mine main ventilation?
FKZ / FKCDZ is the primary main-ventilation direction on this page. K / DK can also be reviewed for main or auxiliary duty where the project operating point and efficiency requirements fit.
Which series are used for local metal-mine ventilation?
JK / DJK and FK / FKD are local-ventilation directions used for roadway excavation, development headings, stopes and duct-connected working-face air supply. Final selection should be based on the actual airflow, duct resistance and installation conditions.
What is the difference between FK and FKD?
FK covers conventional single-stage local ventilation configurations. FKD uses a counter-rotating arrangement and is reviewed where the ventilation system requires greater pressure capability or longer duct air delivery.
Can an old JK or DJK fan be replaced with an FK or FKD model?
Replacement should be reviewed from the existing fan nameplate, motor data, airflow, pressure, duct diameter and installation dimensions. Do not select a replacement from the model name alone.
Should the fan be selected from airflow alone?
No. Airflow should be reviewed together with system resistance, ventilation role, duct conditions, mine layout, installation position and operating conditions.
Why is mine layout important?
Roadway layout and branch conditions affect the ventilation network and influence the required fan operating duty.
What information should be sent for selection?
Send the mine type, ventilation role, airflow, pressure or resistance, roadway or duct information, installation position, operating conditions and electrical supply.
Product Route
01 Roles 02 Role Compare 03 Fan Series 04 Applications 05 Selection 06 Operation 07 Path 08 FAQ Selection Focus
Mine Type
Ventilation Role
Airflow
Resistance
Mine Type
Ventilation Role
Airflow
Resistance
Metal & Non-Coal Mine Fan Selection
Send the Mine Type, Airflow and Ventilation Duty
Mine Type · Ventilation Role · Airflow · Pressure / Resistance · Roadway or Duct Data · Installation Position · Operating Conditions · Electrical Supply
Selection Route
Main / Auxiliary / Local
Main: FKZ / FKCDZ
Main / Auxiliary: K / DK
Local Roadway: JK / DJK · FK / FKD
