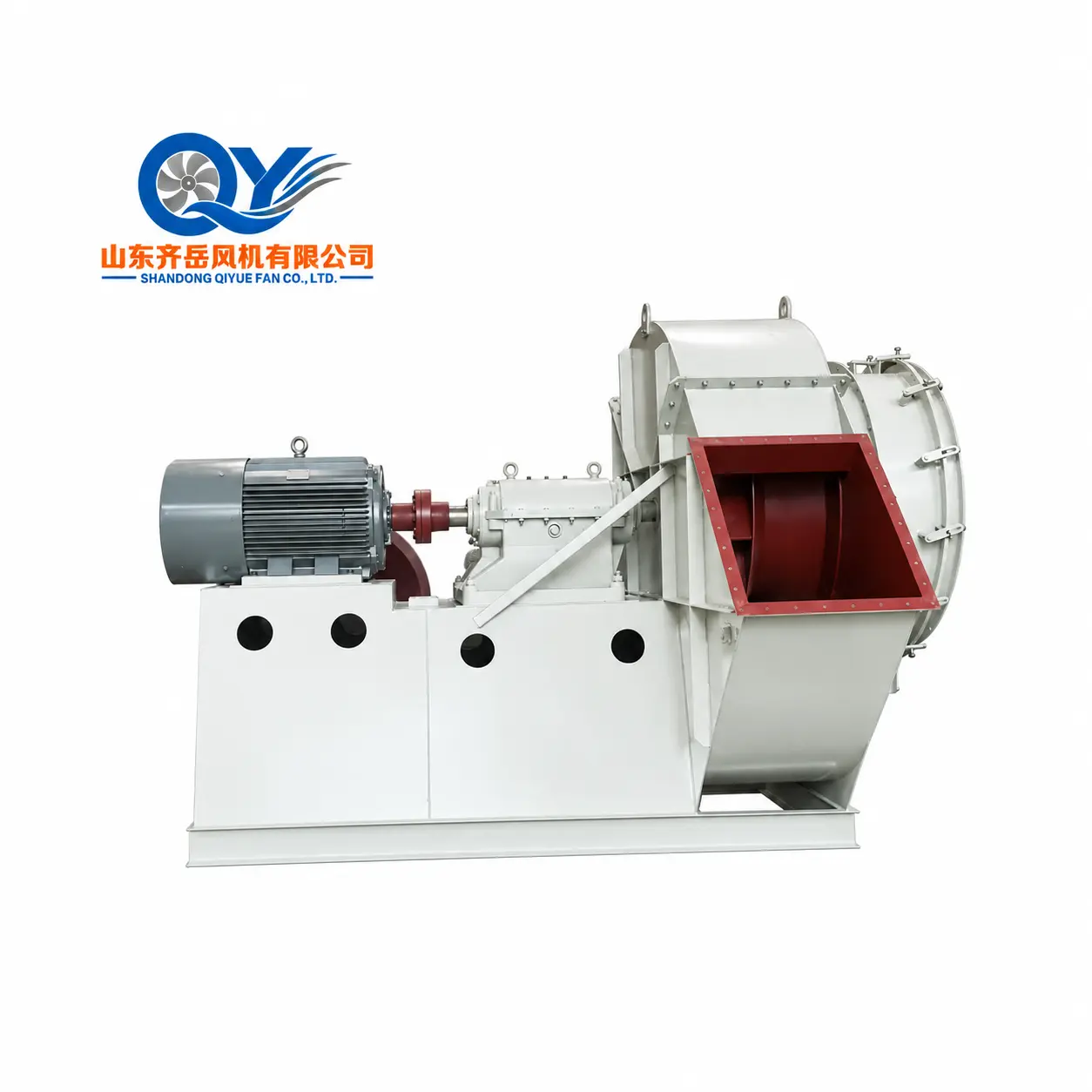

The Y6-30-12 is a C-type boiler induced draft fan series documented for No.3.5C through No.8.6C. It is mainly used in the induced-draft systems of small boilers and packaged boilers.
The original catalogue provides performance, motor, boiler-capacity reference and installation data for the complete documented range, including outlet-position drawings for multiple fan sizes.
Catalogue reference condition: inlet gas temperature 20°C, atmospheric pressure 101325 Pa and gas density 0.745 kg/m³.
Documented Boiler ID Fan for Small and Packaged Boiler Systems
The original catalogue identifies Y6-30-12 for induced-draft systems of small boilers and packaged boilers. Other conditions with similar performance requirements may also be reviewed.
Unlike the Y6-30 series overview page, this page carries documented model-level performance data, size coverage, motor references and installation drawings.
View Boiler Induced Draft System →Y6-30-12 Catalogue Data
Performance Summary by Fan Size
The table below condenses the original catalogue into model-level operating ranges. Final selection should still use the exact duty point within the relevant model row.
| Model | Speed | Pressure Range | Airflow Range | Motor | Boiler Ref. |
|---|---|---|---|---|---|
| 3.5C | 2350 r/min | 853–727 Pa | 655–1192 m³/h | 0.75 kW | 0.2 t/h |
| 4.3C | 2260 r/min | 1206–1020 Pa | 1169–2125 m³/h | 1.5 kW | 0.2 t/h |
| 4.8C | 2250 r/min | 1490–1265 Pa | 1619–2944 m³/h | 2.2 kW | 0.5 t/h |
| 5.4C | 2300 r/min | 2157–1833 Pa | 2202–3963 m³/h | 3 kW | 0.5 t/h |
| 6.5C | 2150 r/min | 2383–2020 Pa | 2926–4945 m³/h | 4 / 5.5 kW | 1 t/h |
| 7.5C | 1800 / 1900 r/min | 2196–2736 Pa | 5000–8771 m³/h | 7.5 / 11 kW | 2 t/h |
| 8.6C | 1850 r/min | 3226–2736 Pa | 9494–17,262 m³/h | 18.5 / 22 kW | 4 t/h |
Three Installation-Drawing Groups Cover the Documented Range
No.3.5C / 4.3C / 4.8C / 5.4C
Shared outline and installation drawing with multiple discharge positions.
No.6.5C / 7.5C
Separate larger-frame drawing and outlet-position dimensions.
No.8.6C
Dedicated large-size outline, base, motor and outlet-position drawing.

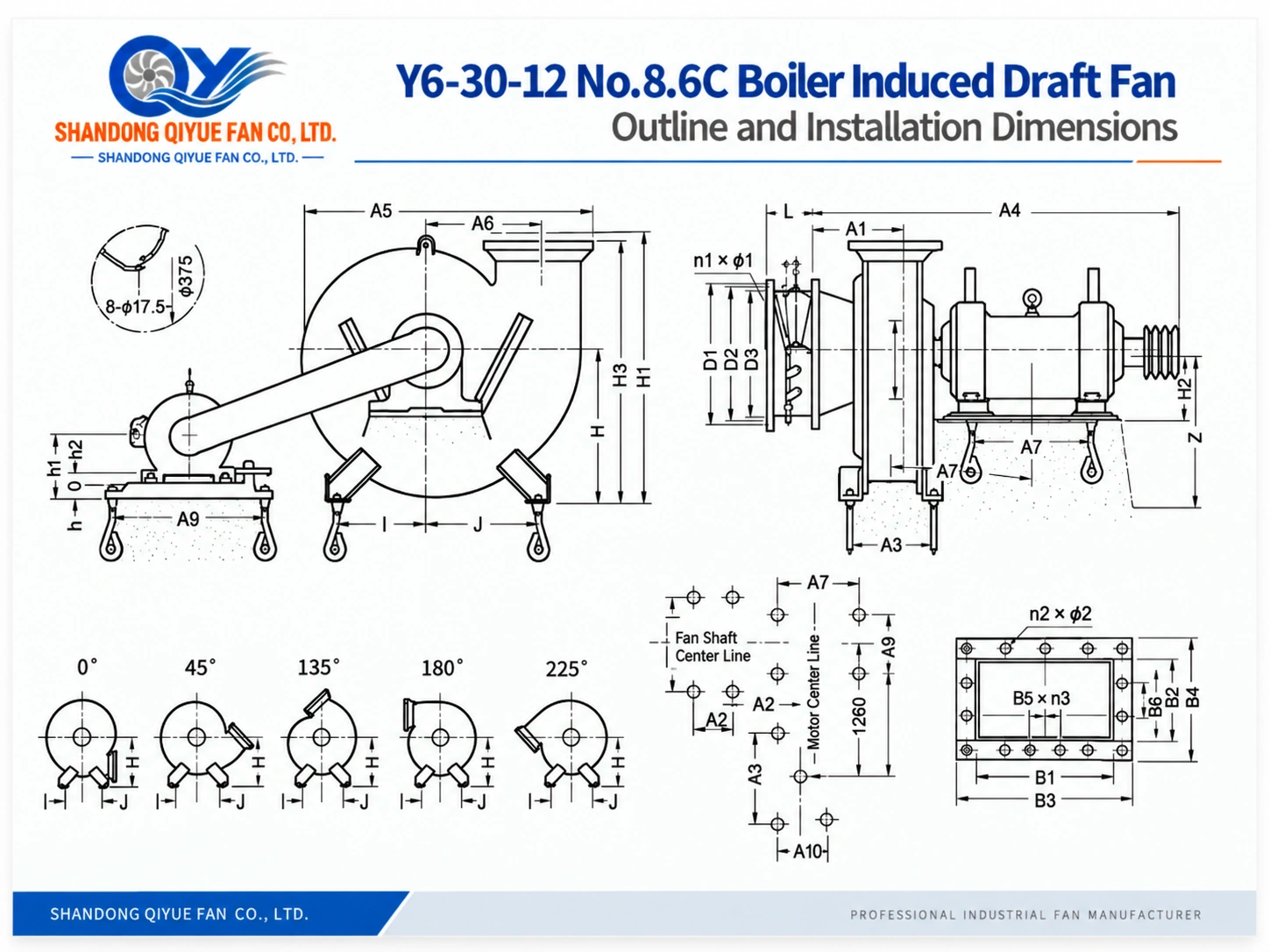

Y6-30-12 No.8.6C Outline and Installation Dimensions
The drawing below is based on the original No.8.6C catalogue page and shows the fan outline, inlet / outlet interface, foundation arrangement, motor position and several documented discharge orientations.
| No.8.6C Item | Catalogue Value | Note |
|---|---|---|
| Inlet D1 / D2 / D3 | 510 / 566 / 616 mm | Inlet connection dimensions |
| Outlet B1 / B2 / B3 / B4 | 430 / 220 / 536 / 332 mm | Outlet connection dimensions |
| A4 / A5 / A6 | 1555 / 1540 / 641 mm | Overall / casing-related dimensions |
| H1 / H2 | 1320 / 280 mm | Height-related dimensions |
| Motor | Y180M-4B3 18.5 kW / Y180L-4B3 22 kW | Catalogue motor references |
| V-Belt | C/3048 × 4 | Catalogue transmission reference |
Select From Airflow and Pressure, Then Check the Boiler Condition
Required Airflow
Use the actual boiler exhaust airflow, not boiler tonnage alone.
Required Pressure
Account for boiler, flue duct, dust collector, damper and chimney resistance.
Gas Condition
Confirm inlet temperature, gas density, dust loading and any corrosive or abrasive condition.
Outlet Position
Match the documented discharge orientation to the project duct route.
Motor Supply
Confirm voltage and frequency for the destination market before quotation.
Installation Interface
Check inlet, outlet, foundation, motor-rail and maintenance-space requirements.
If system pressure is unknown, use the Static Pressure Unknown Guide.
Boiler Induced-Draft Duties Covered by Y6-30-12
Small Boiler Induced Draft
The primary application stated in the original catalogue.
Packaged Boiler Exhaust
Suitable for packaged-boiler induced-draft systems within the documented performance range.
Dust-Collector Exhaust Support
Selection can include resistance from a cyclone, filter or other flue-gas cleaning equipment.
Existing Fan Replacement
Old nameplate, photos, pulley data, motor data and dimensions can be used for replacement review.
Y6-30-12 Boiler Induced Draft Fan FAQ
What models are covered by Y6-30-12?
The original catalogue covers No.3.5C, 4.3C, 4.8C, 5.4C, 6.5C, 7.5C and 8.6C.
What is the airflow range?
Across the documented range, airflow extends from 655 to 17,262 m³/h.
What is the total-pressure range?
Across the documented range, total pressure extends from 727 to 3,226 Pa under the catalogue reference condition.
What boiler sizes are referenced in the catalogue?
The catalogue references approximately 0.2 to 4 t/h boilers depending on fan size. Actual selection should still use airflow and pressure.
What should I send for quotation?
Send boiler capacity, airflow, pressure, inlet-gas temperature, dust condition, duct layout, voltage, frequency, quantity and preferred outlet direction.
Send the Boiler Duty Point
Send airflow, total or static pressure, boiler capacity, inlet-gas temperature, dust condition, voltage, frequency, discharge orientation, quantity and destination.
